Arista : VARP Configuration

Virtual-ARP or VARP is a routing technique that allows multiple switches or routers to simultaneously route packets from a common Virtual IP (VIP) address in an active/active switch/router configuration. Each switch or router is configured with the same VIP address on the corresponding VLAN interfaces (SVI) and a common virtual MAC address. In MLAG topologies, VARP is preferred over VRRP because VARP does not require traffic to traverse the peer-link to the master router as VRRP would.

A maximum of 500 VIP addresses can be assigned to a single VLAN interface. All virtual addresses on all VLAN interfaces resolve to the same virtual MAC address. However you cannot have a secondary VIP on the same VLAN interface, you can however implement VRRP on the same VLAN interface as VARP.

VARP functions by having each switch respond to ARP and GARP requests for the configured router IP address with the virtual MAC address. The virtual MAC address is only for inbound packets and never used in the source field of outbound packets.

The following commands configures 10.10.10.1 as the virtual IP address for VLAN 10. The Virtual-Router MAC address is entirely invented by you, I had a real issue finding clarification that it was just a made up MAC address, so here is my invented made up Virtual-Router MAC 1010.1010.1010 as the virtual MAC address on both switches. I also ran into an issue where #ip routing had to be enabled.

Here is what the Topology would look like:

Configuration that implements VARP on the first switch

TPW-SW1(config)#ip virtual-router mac-address 1010.1010.1010

TPW-SW1(config)#interface vlan 10

TPW-SW1(config-if-vl10)#ip address 10.10.10.2/24

TPW-SW1(config-if-vl10)#ip virtual-router address 10.10.10.1

Configuration that implements VARP on the second switch

TPW-SW2(config)#ip virtual-router mac-address 1010.1010.1010

TPW-SW2(config)#interface vlan 10

TPW-SW2(config-if-vl10)#ip address 10.10.10.3/24

TPW-SW2(config-if-vl10)#ip virtual-router address 10.10.10.1



Network Utilities : SuperPutty Setup

I only use SuperPutty with GNS3, here is how.

  • GNS3 as of 1.5.2 doesn’t include the latest version so download it from here:
  • Start SuperPutty which will present you with the configuration options.  Set the following:
    • YOU MUST USE THE PUTTY PROVIDED WITH GNS3.  If you don’t, you’ll receive errors “unknown option -wt” when opening consoles with SuperPutty from GNS3
    • putty.exe location (Required): C:\Program Files\GNS3\putty.exe
      • Or where-ever GNS3 is installed
    • Click the “Advanced: tab > Check off “Only allow single instance of SuperPutty to run”
  • Set the other options however you like
  • Open up Preferences in GNS3 > General > Console applications tab
  • Change the console application for telnet and serial to use SuperPutty
  • If you want to use keep the same color scheme that is used by the regular Putty console, add “-gns3 5 -skin 4” at the end i.e.
    • c:\dropbox\apps\superputty\SuperPutty.exe -telnet “%h -P %p -wt \”%d\” -gns3 5 -skin 4″

GNS3 : Install and Configure

This install is intended for running IOU/IOL images on the GNS3 VM because it is the preferable way of running IOS in GNS3 now.

Pre-Requisites:

  1. Install VMware Workstation Player
    http://www.vmware.com/products/player/playerpro-evaluation.html
  2. Install VMware VIX API
    https://www.vmware.com/support/developer/vix-api/
  3. Install Wireshark
    https://www.wireshark.org/download.html
    Install WinPCAP provided by Wireshark



Install GNS3:

  1. Install GNS3
    https://www.gns3.com/software/download
  2. Install only the following components:

  1. We don’t need Dynamips/QEMU/VPCS/Cpulimit because we’ll be running everything off of the GNS3 VM server.  We don’t install SuperPutty from here because its not the latest version and the first thing it does when you open it is bug you about upgrading to the latest version.  There are setup instructions for it below.

Install Loopback Adapter

  1. Open an Admin Command Prompt

cd “c:\Program Files\gns3”

loopback-manager.cmd

  1. Install a new Loopback interface (reboot required)
  2. Reboot
  1. Rename the new Loopback adapter to “Loopback”
  2. Assign it an IP address



Setup GNS3 VM:

  1. Download the GNS3 VM version that matches the installed GNS3 version
    https://github.com/GNS3/gns3-gui/releases
  2. Import the VM and keep the defaults
  3. Add a 3rd Network Adapter that will be in Bridged mode and connected to the Loopback adapter (Microsoft KM-TEST Loopback Adapter)

  1. Power on the VM
  2. SSH into the VM using gns3/gns3 for the credentials
    1. Sudo to root and run the following:
      1. echo ‘127.0.0.127 xml.cisco.com’ >> /etc/hosts
  3. Leave the VM powered on, we’re done with it for now
  4. Open an Administrator command prompt
  5. cd into the GNS3 install directory and run the following:
    1. IMPORTANT: On my work laptop, added the additional interfaces broke network connectivity to the VM after they were added.  I have no idea why but after I reinstalled VMware Workstation which uninstalled all the adapters, I was able to connect to the VM again.  On the work laptop, I’m running without the additional adapters and it seems fine so far.
    2. vmnet-manager.cmd
    3. Select option 1 which will add the vmnet interface 2 to 19 (this can take a while, please be patient)
    4. If it looks like this process has hung, you follow step 2 in the url below to add the adapters
      https://www.gns3.com/support/docs/how-to-use-vmware-player-in-gns3

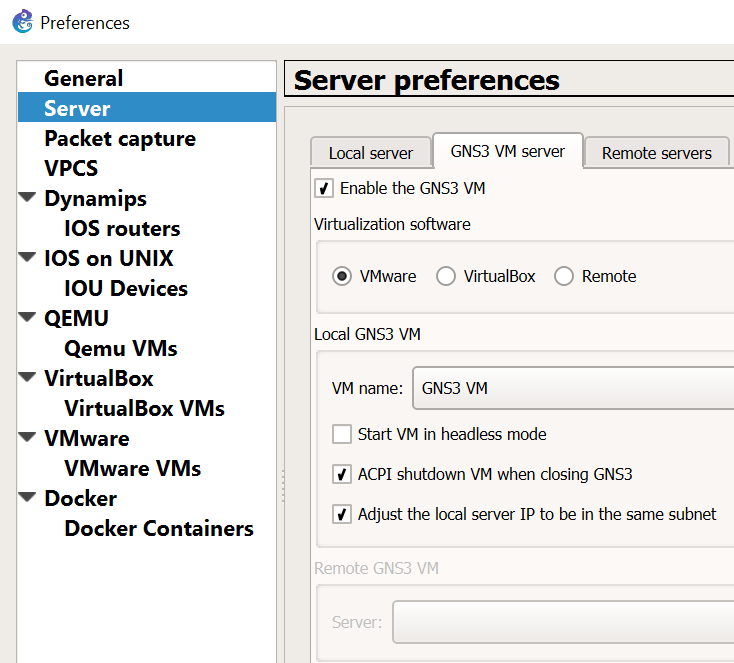

Configure GNS3 to use the GNS3 VM server:

  1. Open up GNS3
  2. Goto Edit > Preferences

    Be sure to leave “Start VM in headless mode” unchecked.  I ran into issues where the VM would not automatically startup when opening GNS3 and also cause the GNS3 process to linger when closing out of it.
  3. Disable “Use of the local server” for Dynamips and QEMU.  We’ll use the GNS3 VM instead for running those processes.

Packet capture VPCS Dynamips IOS routers General settings Use the local server Path to Dynamips:

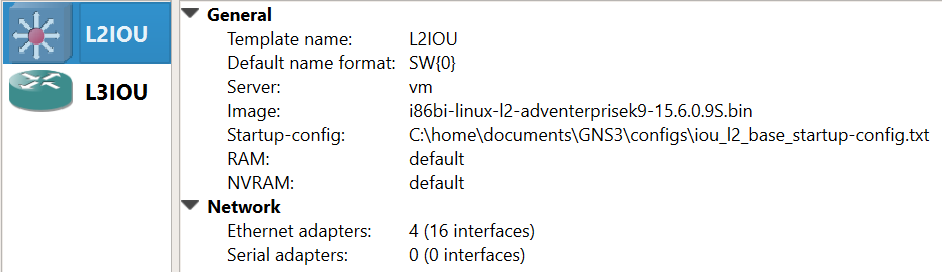

Create the L2/L3 IOU Devices:

  1. Goto Edit > Preferences
  2. Set the iourc file to use with the license (IOU devices need a license to run)
  3. Create the L2 image:
  4. Create the L3 image:

Add Device Image

New appliance template > Add and IOU > Run the IOU > New Image > Browse



i86bi-linux-l2-ipbasek9-15.1e.bin – IOU-L2

i86bi-linux-l3-adventerprisek9-15.4.2T.bin – IOU-L3





Operational Notes:

  • Sometimes a restart of all the routers/switches are required when new links are created between devices.  Even though the line protocols show as up, I’ve found a restart is required for traffic to actually pass through them.



If you want to use SuperPutty as the SSH client for GNS3 click this link:
SuperPutty with GNS3
